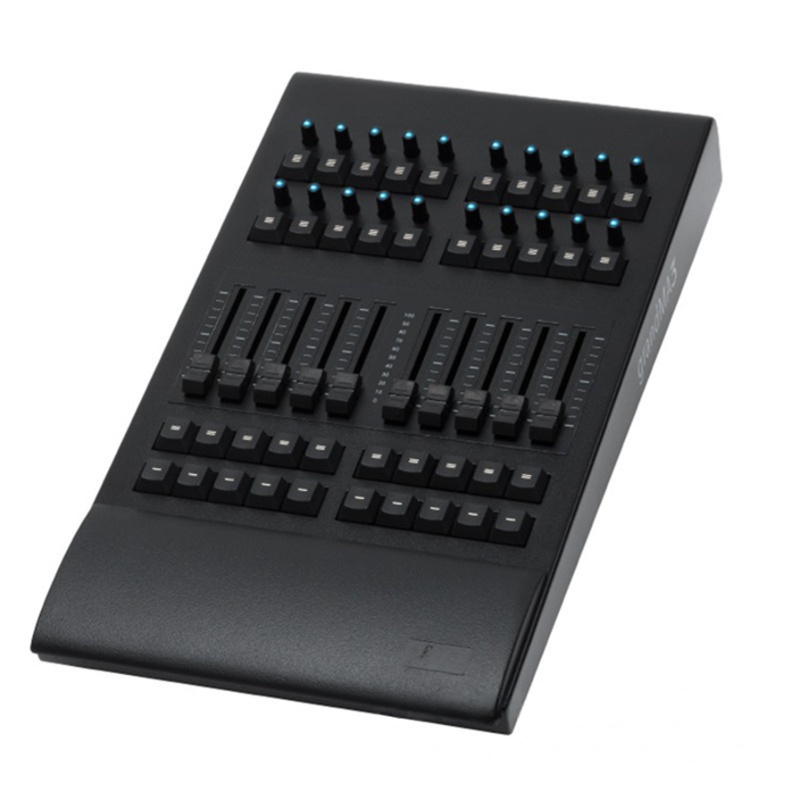

MA3 onPC fader wing light

Fader Module for Lighting Control

• Real-time control of up to 2048 parameters in combination with grandMA3 onPC
• Expandable to up to 4096 parameters with grandMA3 onPC products and grandMA3 onPC
• 20 rotatable RGB backlit encoders
• Ten motorised 60 mm faders
• 40 independent playbacks
• Individually backlit, dimmable and low-noise (clickless) buttons
• Includes dust cover, magnetic labelling strip for ten faders, 2.0 m IEC cable with open end and 2 m USB 2.0 cable

• Technical data:

  • Parameter: 4096 (HTP/LTP)
  • Parameter Mode2: None
  • Supply voltage: 100-240 V / 50/60 Hz
  • Power: Max. 50 VA
  • Dimensions (W x D x H): 240 x 427 x 102 mm
  • Weight: 5 kg

  Connectors:

  • One IEC-60320 C14 mains plug
  • Two DMX512-A outputs (XLR 5-pin female)
  • One USB 2.0 (type B)
  • One LED desk light (4-pin XLR female)
• Dimensions (W x D x H):240 x 427 x 102 mm
