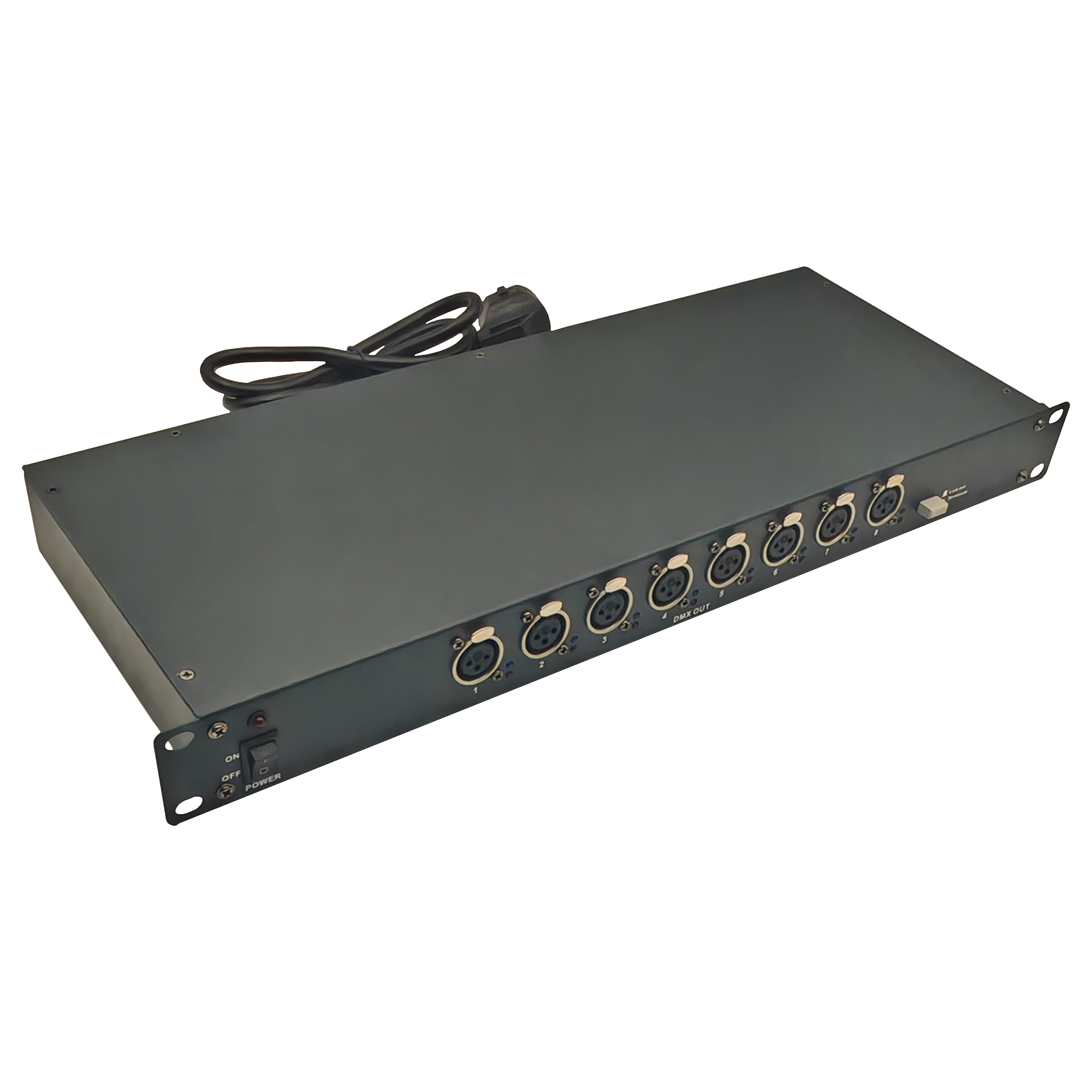

8-way DMX distributor

DMX SPLITTER 8CH –  8-way DMX distributor

Model: HD-226 DMX

Absolute electrical isolation between input and output or between output and output.

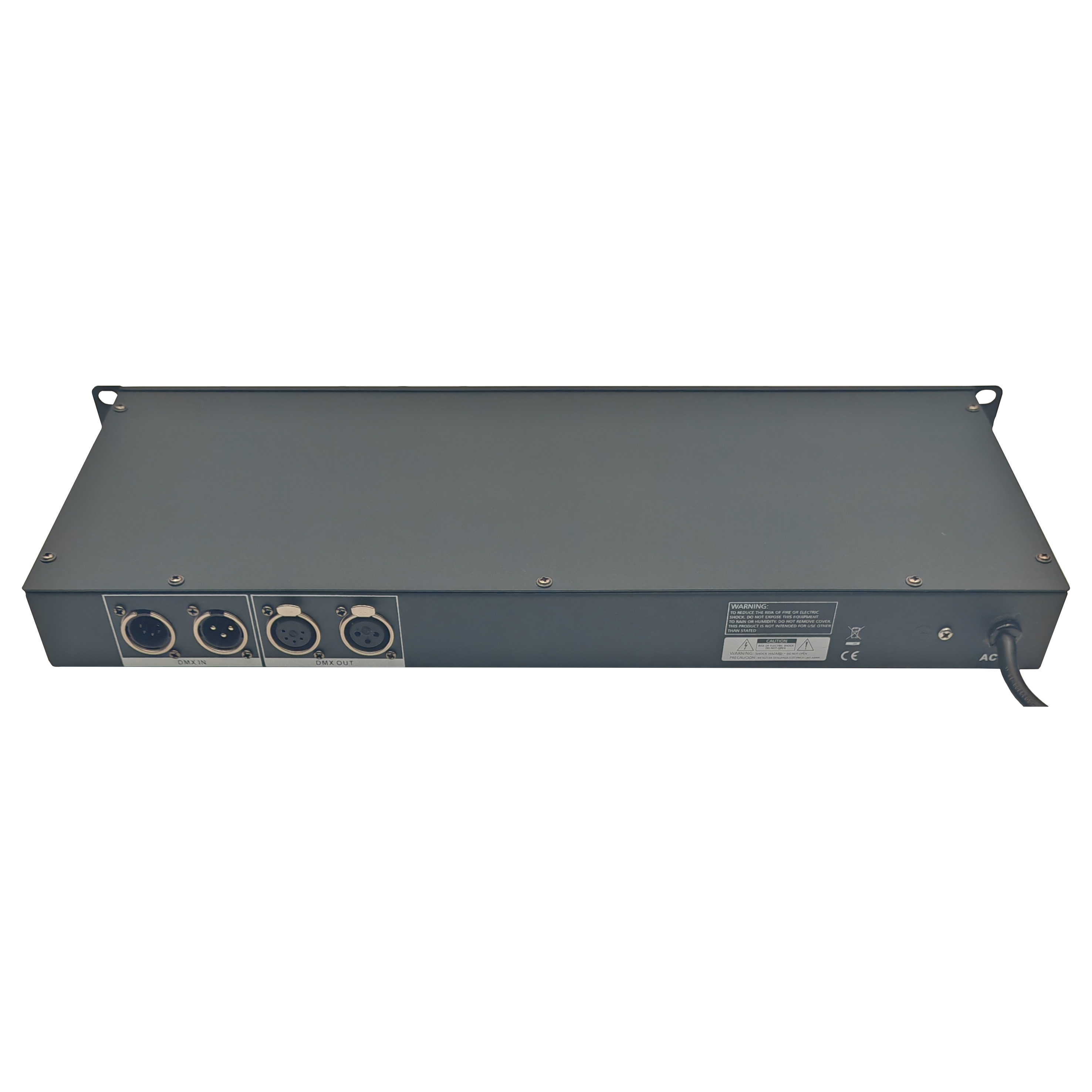

Input with 3P and 5P XLR

Each of 8 DMX output has a separate drive

Both positive and negative data outputs have signal indicators

In addition, the link output/termination selector is used to prevent DMX output errors or failures caused by DMX inputs

Power input：AC230V-50Hz (AC120V-60Hz) (AC110V-60Hz)

Fuse（Interior）：F500mA-250V 5*20mm(9Pcs)

Size：482mm*180mm*46mm

Weight：3.1Kg

Safety Instructions:

Do not expose this product to high temperatures or humid areas to prevent fire or shock hazards.

This product is intended for indoor use only.

This apparatus must be earthed.

The device should only be opened and serviced by qualified   laboratory personnel.

Disconnect the device from the power source before performing any maintenance.

Avoid inserting objects or spilling liquids into the device to prevent electric shock or short circuit.

Ensure adequate ventilation around the device to prevent overheating.
