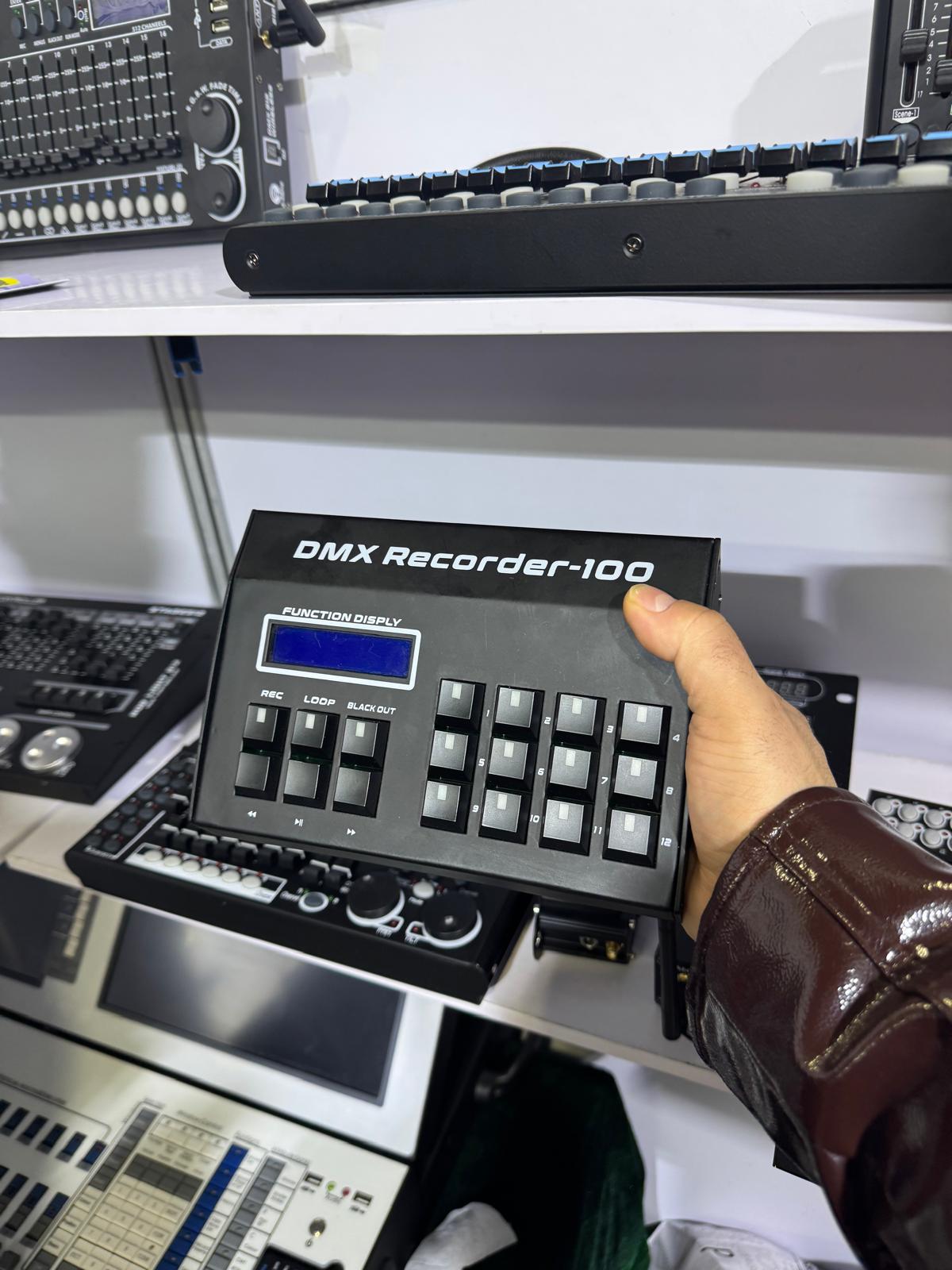

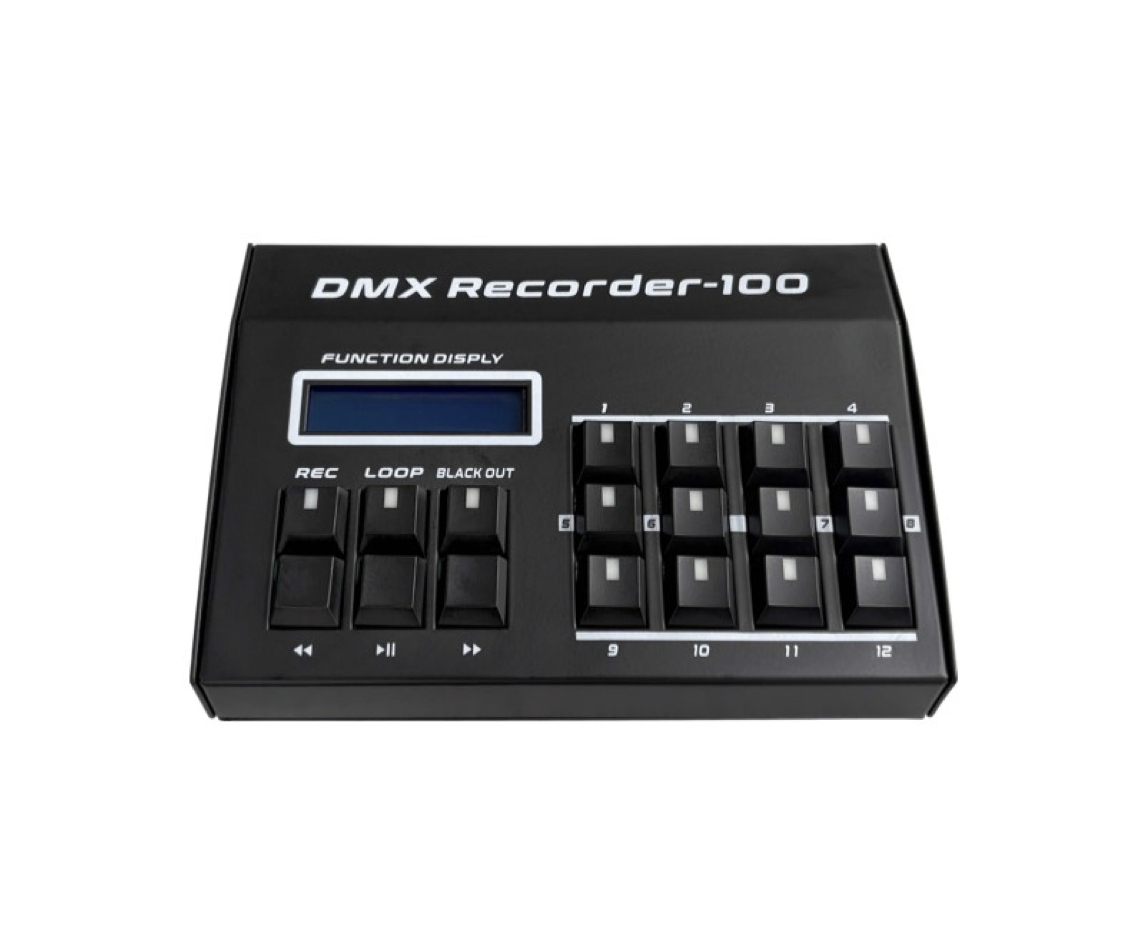

DMX Recorder 100

Real time recording is achieved through a single channel of DMX 512 signal input.

It can store various recorded files and adjust their playback speed.

All DMX 512 signal files can be stored on an SD card and uploaded to a computer Built in 32GB SD card storage, 12 different programs LCD display screen Built in clock synchronizer, can set time on/off Dedicated audio interface, external audio triggers program synchronization.

Operation Voltage: 100-250 v AC, 50/60 Hz
Electricity Consumption: 4 W max
Cooling: conventional
Protection: IP 20
DMX input: 2 x 3-pin xlr male with sealing
DMX Output: 3-Pin XLR Female with sealing
Control: DMX512
Memory buttons: 12
Scenes: static

Size: Length: 227mm*Width: 130mm*Height: 70mm
Weight: 1.17 kg
